Descripción
| Model | |
|---|---|

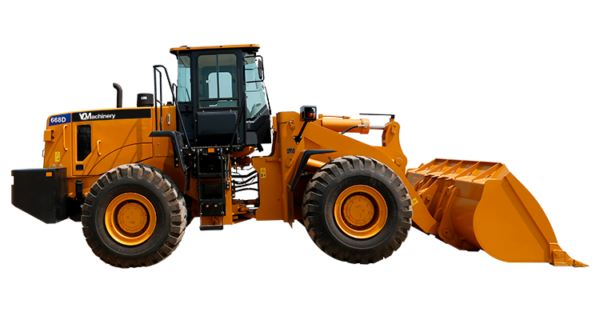

| Model | VQM668D |
| Main Specifications | |
| Rated Payload | 6,000kg |
| Operating Weight with Standard Bucket | 20,117kg |
| Bucket Capacity | 2.9-5.5m³ |
| Operating Specifications | |
| Breakout Force | 197kN |
| Max. Drawbar Force | 188kN |
| Transmission | |
| Transmission Gears | F4/R3 |
| Torque Converter Type | Single Stage, 3 Elements |
| Maker & Type | VQM160 |
| Axle (Axle, Tire & Brakes) | |
| Main Reducer type | Spiral Bevel Gear, Single Stage |
| Final Drive Reduction Type | Planetary Type, Single Stage |
| Rear- oscillation +/- | ±11 |
| Engine | |
| Engine Model | Weichai WD10G240E201 |
| Rated Power | 178 |
| Rated Speed | 2,200r/min |
| Displacement | 9.7L |
| Emission | T2/Stage2 |
| Implement Hydraulic System | |
| Implement System Type | Open Center |
| Hydraulic Cycle Time | 9.85s |
| System Pressure Setting | 18Mpa |
| Raise | 5.33s |
| Brake System | |
| Service Brake | Dry&Caliper, Air to Oil Control |
| Parking Brake | Drum/Shoe |
| Service Refill Capacity | |
| Fuel Tank | 252L |
| Engine Lubricating Oil | 21L |
| Hydraulic System | 165L |
| Transmission Oil | 45L |
| Tires | |
| Size | 23.5-25 |
| Type | Bias |
| Layer | 20 |
Multiple Applications
- Landscaping, building, sewer/water tie-in, local utility construction
- Ready mix cement/concrete products, quarry/stone, clay, recycled aggregate, sand and gravel Highway, street, tunnel, airport, residential commercial
